Unknown Manufacturer

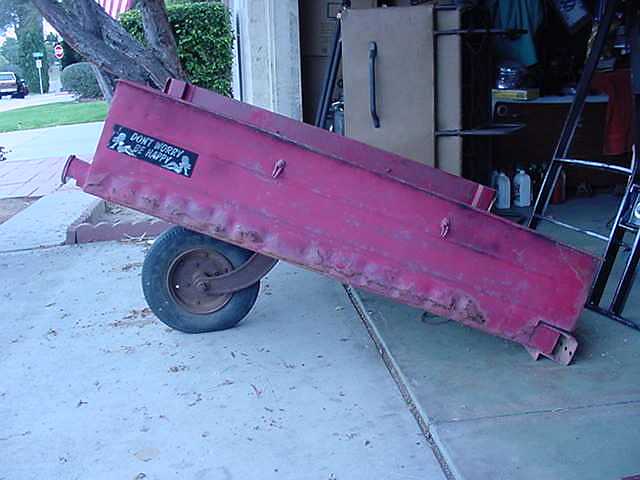

Yet another unknown trailer make. This is an very interesting trailer. The two sides you see here are steel, while the front, rear and bottom of the trailer are all wood. It also has open square tubes for bows to make a covered wagon type of thing similar to the Trail-ege. trailers. Looking at the second picture, the tubes are visible. The front and rear of the trailer (I believe) should be made of removable planks that slide into place and are secured with a bolt.

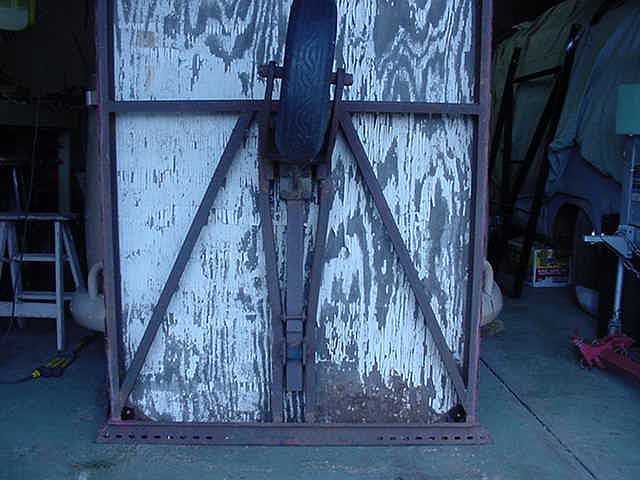

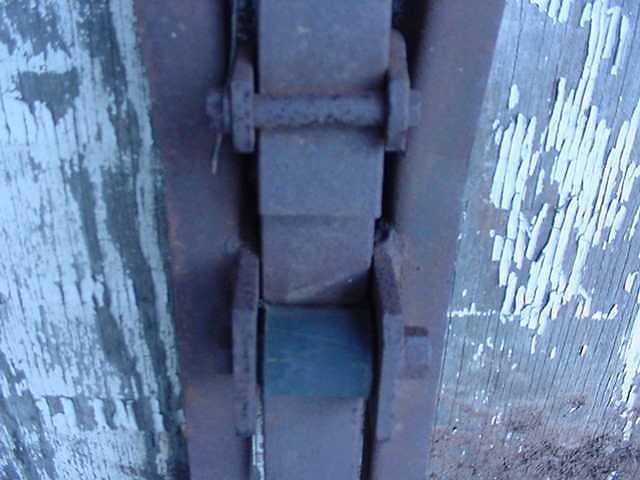

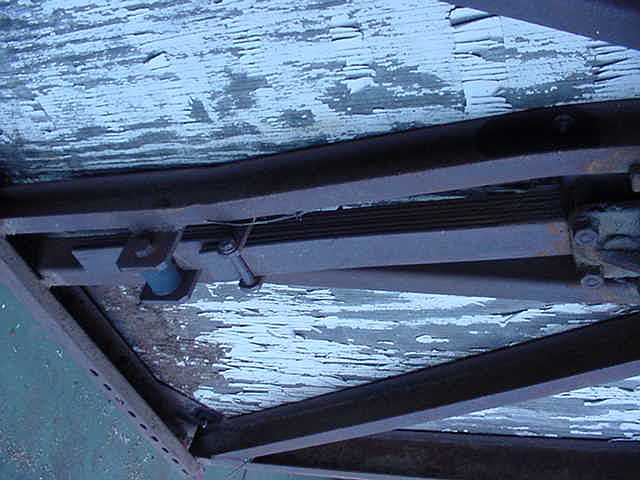

The most interesting thing about this trailer is the suspension. In the last four pictures, you will see a form of leaf spring suspension. I have yet to tear down the trailer for clean up and restoration, so I'm not extremely sure how the whole thing works. So far this is the only trailer besides the Trail-ege to use a leaf spring, versus the more traditional coil spring for suspension.  Unlike the suspension of the Trail-ege, the suspension here is only half of a leaf spring.  It only connects to the trailer frame in the front, and the wheel assembly in the rear.  If you recognize this model or have something like it, please let me know. See the description below the Pics for more.

Here are a few pics of my single wheel box trailer.

The Plan

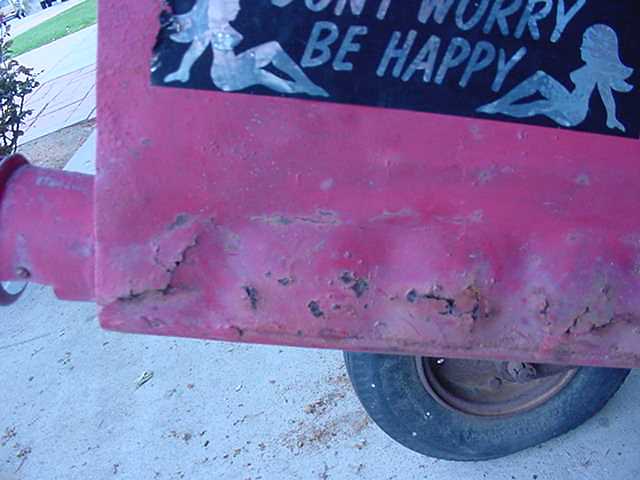

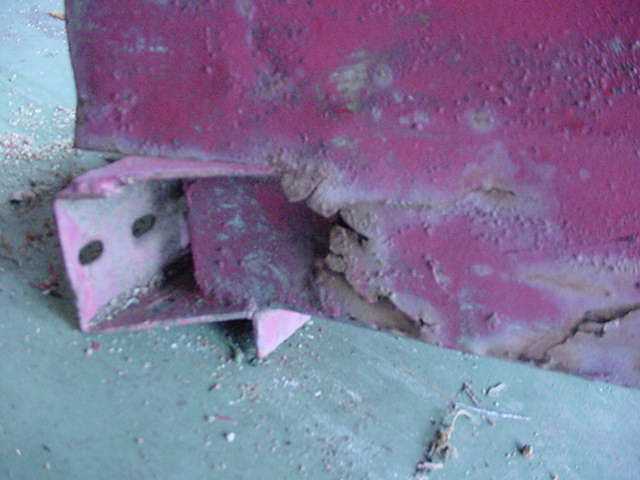

• As you can see there is some rust repair to do, so I will be cutting off the bottom 3 inches or so which will separate the sides from the frame.  At this point, I will be able to weld in a new bottom three inches and reattach the sides to the frame.
• I would really like just clear coat the clean metal, but that entails a whole nother level of body work, so I haven't decided on that for sure.

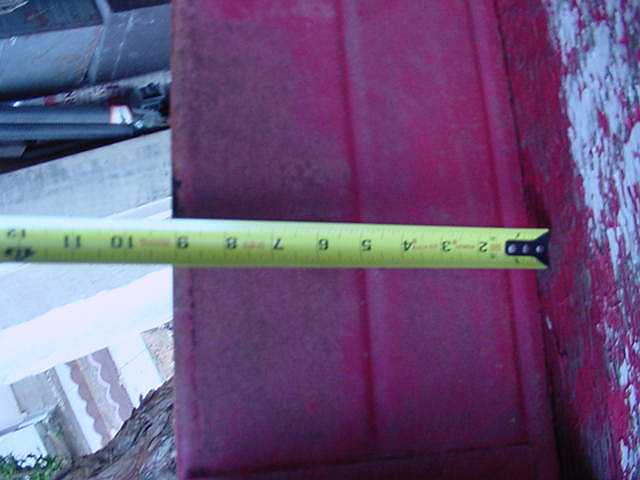

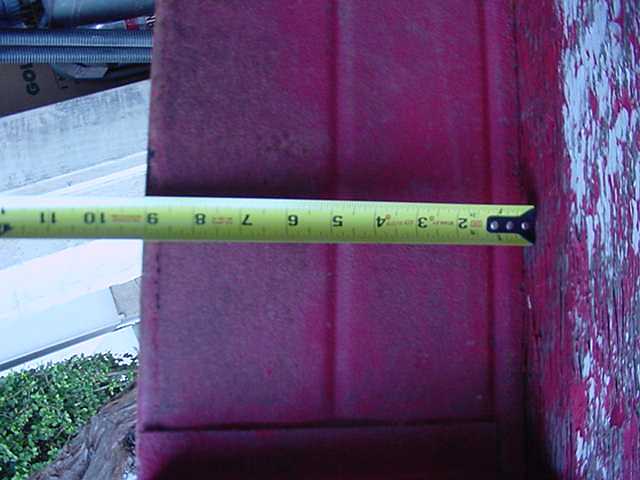

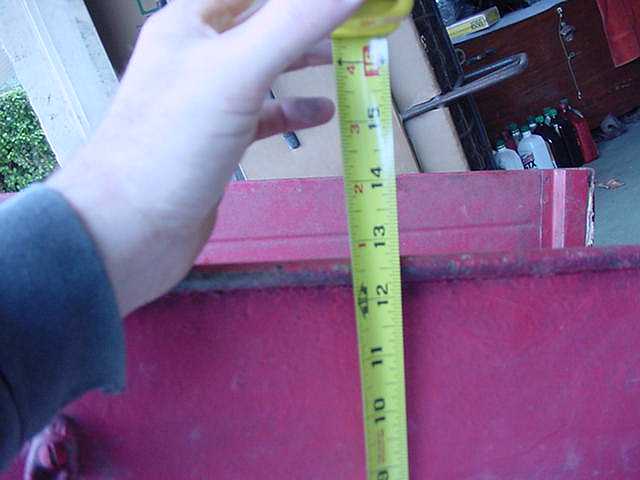

• The measuring taps is for my reference later as I disassemble the trailer and put it back together.

Description

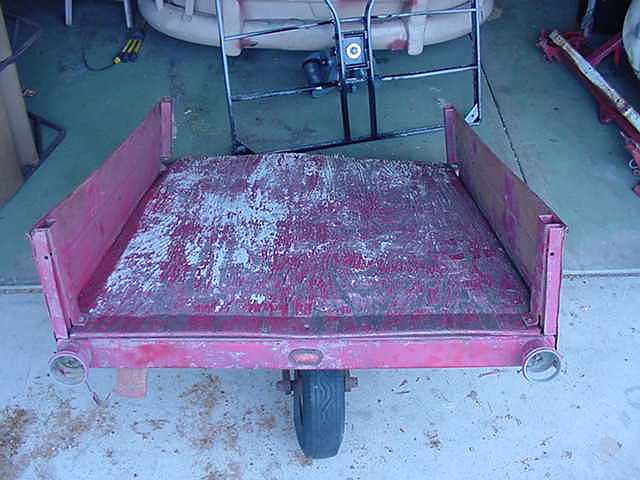

• The bottom the bottom is 1/2" plywood, and the front and rear are supposed to be 1/2" plywood inserts.
• Sides are steel welded to the frame.
• Frame is made of squared "U" shaped steel.
• There are a couple of hooks on each side.  Probably for holding down a canvas top?
• Leaf spring suspension is very unique and different.

Work being done

• Not a lot of work being done here as other projects need to be finished first.

Parts needed

• Front and rear plywood inserts will need to be cut.
• Bows for canopy and canvas.
